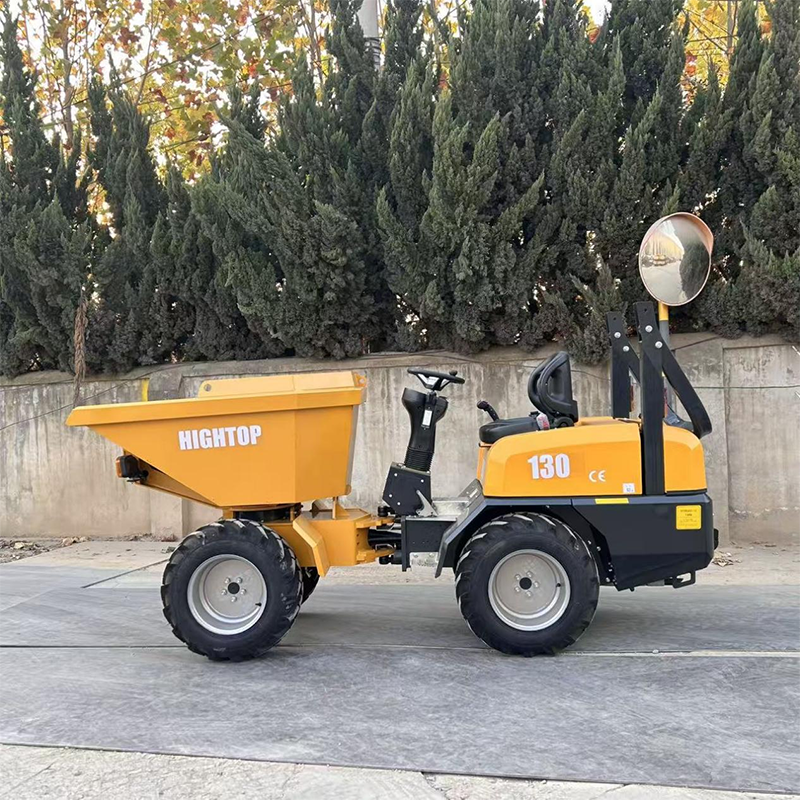

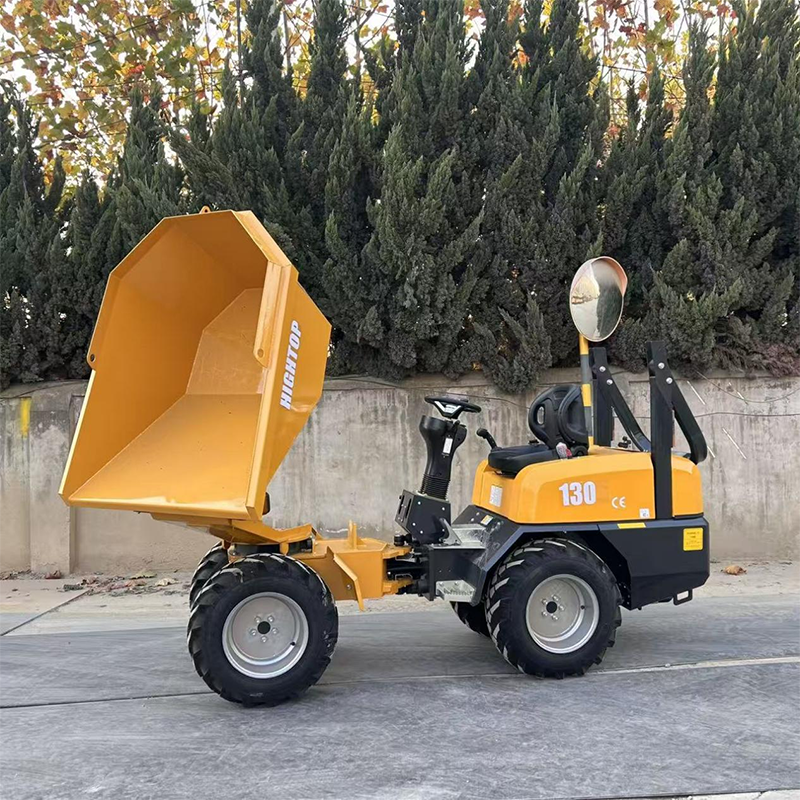

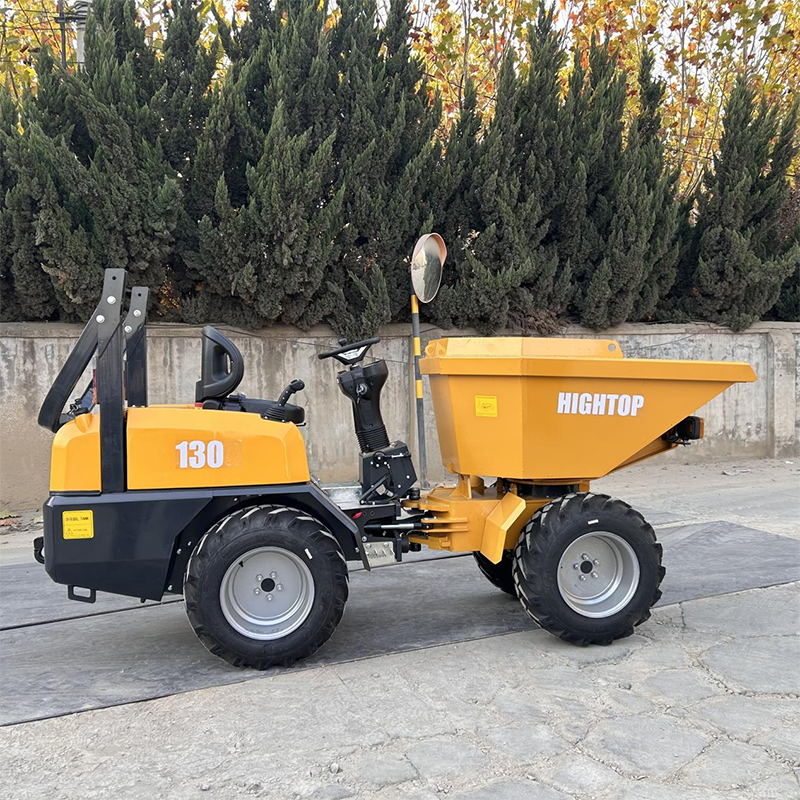

HT130座驾式翻斗车

产品推荐

HT130座驾式翻斗车参数

性能参数 performance parameter
额定载重Rated Load	1300kg
最大载重Maximum Load	1500kg
车身净重Net Weight of Vehicle Body	1560kg
水平容积Horizontal Volume	0.5m3
堆高容积Stacking Volume	0.65m3
料斗转动角度Rotation Angle of Hopper	+90°
爬坡高度Climbing Gradient	30%
液压油箱容量Hydraulic Oil Tank Capacity	30L
柴油箱容量Diesel Oil Tank Capacity	30L
最大行驶速度Maximum Travel Speed	12Km/h
尺寸参数(参照10.0/75-15.3轮胎测量)Size parameters (see 10.0/75-15.3 Tire measurement
车身总长度Total Length of Vehicle Body	3550mm
轮间距Wheel Spacing	1600mm
最小离地间隙。Minimum Ground Clearance	242mm
倾卸高度3Dumping Height3	1045mm
料斗转轴高度Height of Hopper Rotating Shaft	1193mm
料斗的前沿高度Height of the Front Edge of the Hopper	1355mm
最大倾角高度Maximum Tilt Angle Height	2530mm
倾卸角度Dumping Angle	70°
车轮总宽度Total Width of Wheels	1046mm
料斗宽度Width of Hopper	1200mm
料斗长度Length of Hopper	1530mm
正面安全倾卸距离Front Safe Dumping Distance	480mm
侧面安全倾卸距离Side Safe Dumping Distance	398mm
发动机Engine:
久保田 D1105/久保田V1505Kubota D1105/ Kubota V1505
新柴 3B11Shinchaya 3B11
轮胎Tire:10,0/75-15.3400/60-15.5

以上参数如有改动，恕不另行通知！获取最新资讯，或有产品定制需求，请联系客服人员: 问题咨询及获取报价
