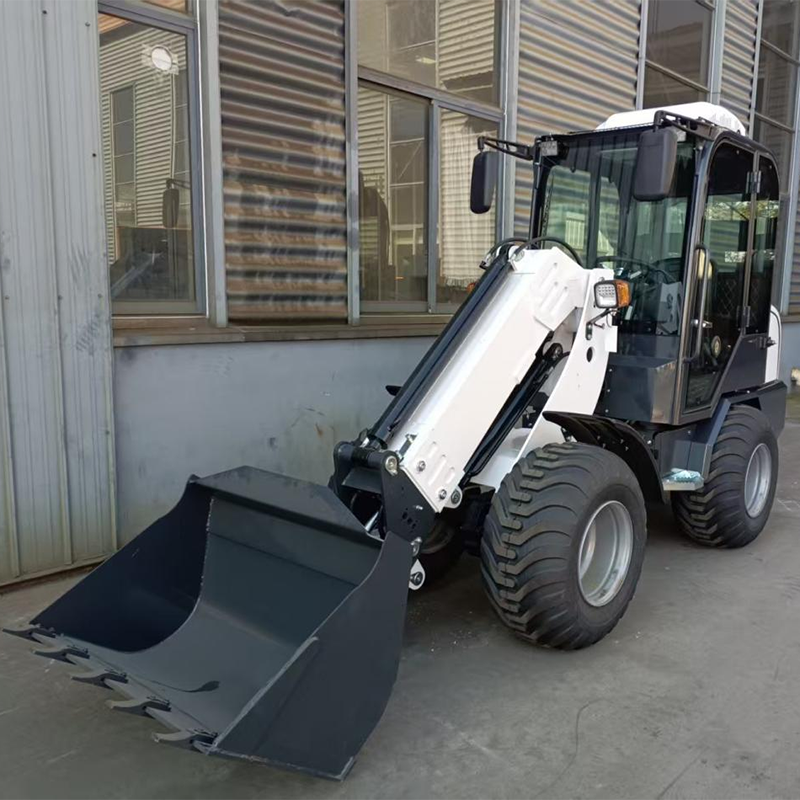

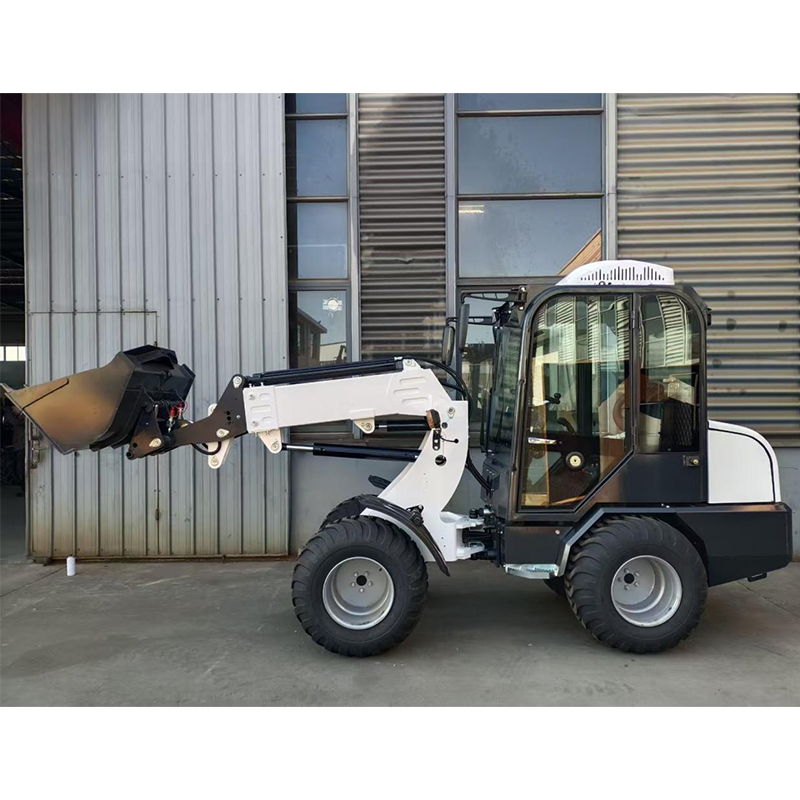

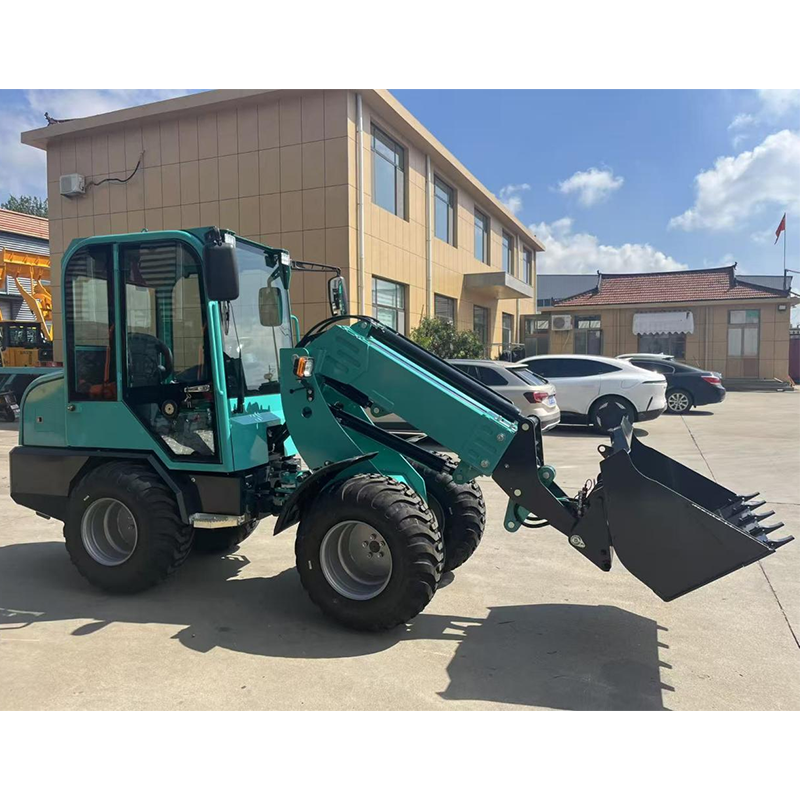

HT220T伸缩臂装载机

产品推荐

HT220T伸缩臂装载机参数

性能参数 performance parameter
主臂最大载重Maximum Load of Main Arm	800kg
小臂伸出最大载重Maximum Load with Small ArmExtended	450kg
车身净重Net Weight of Vehicle Body	2080kg
铰接转弯角度Articulated Turning Angle	45°
爬坡高度Climbing Gradient	30%
液压油箱容量Hydraulic Oil Tank Capacity	40L
柴油箱容量Diesel Oil Tank Capacity	40L
最大行驶速度Maximum Travel Speed	12Km/h
发动机 Engine	久保田D1105/久保田V1505Kubota D1105 / Kubota V1505 新柴 3B11Shinchaya 3B11
轮胎Tire	10,0/75-15.3400/60-15.5
尺寸参数 Size parameters (refer to 400/60-15.5 tire measurements)
车身总长度Total Length of Vehicle Body	4494mm
轮间距Wheel Spacing	1550mm
后轮到车尾距离Distance from Rear Wheels to Rear of Vehicle	1165mm
最低点收斗角度Bucket Retraction Angle at Lowest Point	51°
伸出前最大卸料高度Maximum Unloading Height Before Extension	2245mm
伸出后最大卸料高度:Maximum Unloading Height After Extension	2846mm
最高点收斗高度Bucket Retraction Height at Highest Point	4065mm
最高点收斗角度Bucket Retraction Angle at Highest Point	51°
伸出后卸料安全距离Safe Unloading Distance After Extension	1321mm
车轮总宽度Total Width of Wheels	1320mm
最高处卸料角度Unloading Angle at Highest Point	31°
伸出前卸料安全距离Safe Unloading Distance Before Extension	802mm
最小离地间隙Minimum Ground Clearance	272mm
挖掘深度Digging Depth	102mm

以上参数如有改动，恕不另行通知！获取最新资讯，或有产品定制需求，请联系客服人员: 问题咨询及获取报价
